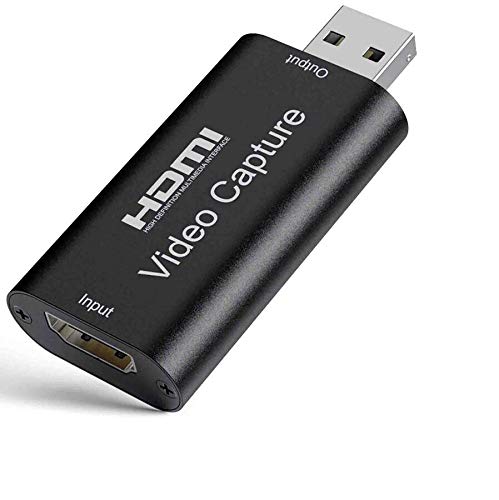

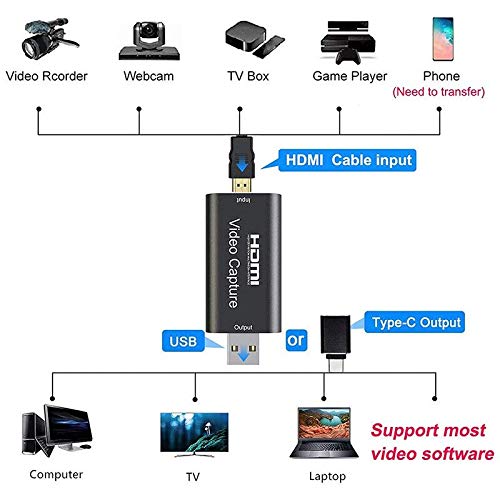

The D’FINE video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Specifications:

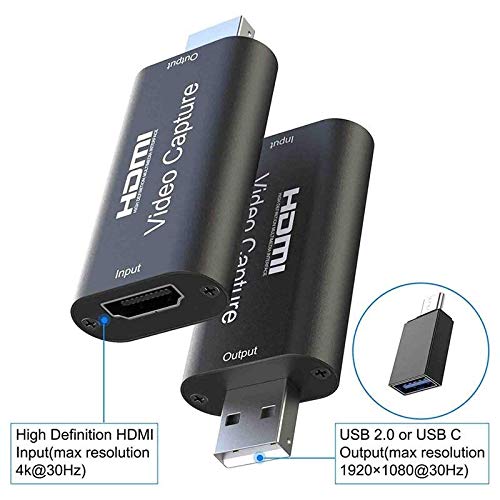

HDMI resolution: Max input can be 3840×2160@30Hz
Video output resolution: Max output can be 1920×1080@30Hz
Video output format: YUV/JPEG
Support video format: 8/10/12bit Deep color
Support audio format: L-PCM
Support AWG26 HDMI standard cable: input up to 15 meters

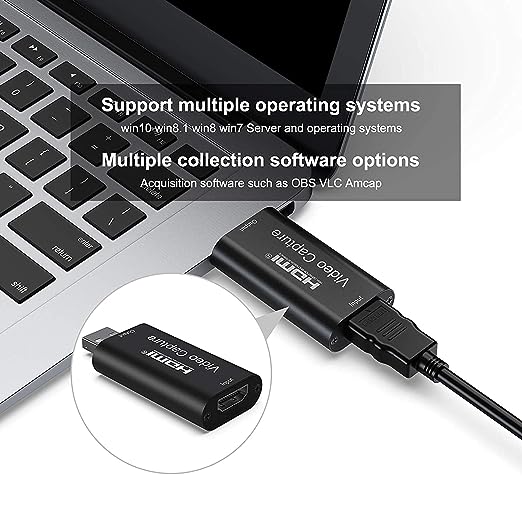

Support most acquisition software, such as VLC / OBS / Amcap, etc
Support Windows / Android / MacOS
Conform to USB Video and UVC standard
Conform to USB Audio UAC standard
Max working current: 0.4A/5V DC
Dimension (L x W x H): 64x28x13 (mm)
Without external power supply, compact and portable.
Package Include:
1X Audio Video Capture Card
1X English User Manual
