Product description :

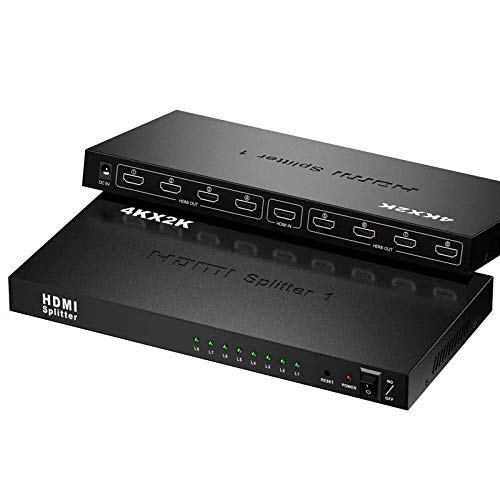

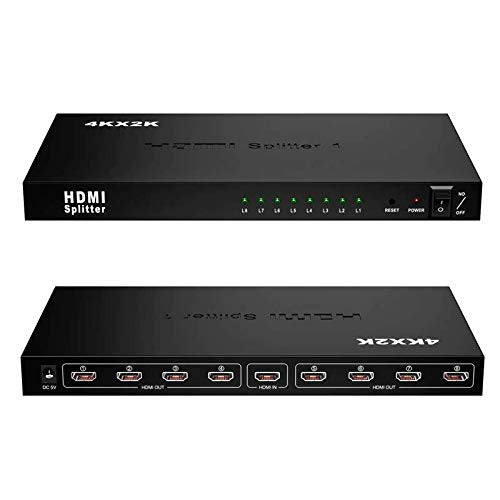

1x8 HDMI Splitter High Resolutions Up to 4Kx2K&3D,Supports EDID and HDCP Control - Adapter Included

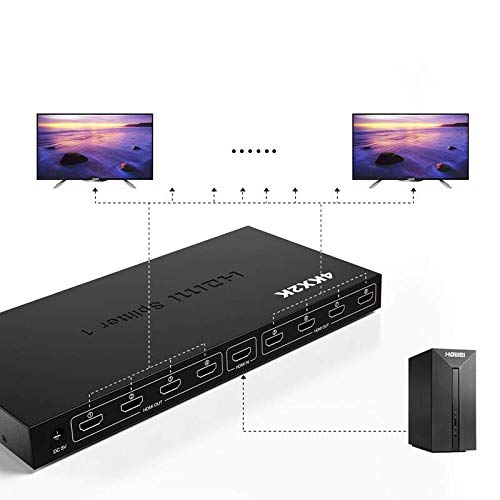

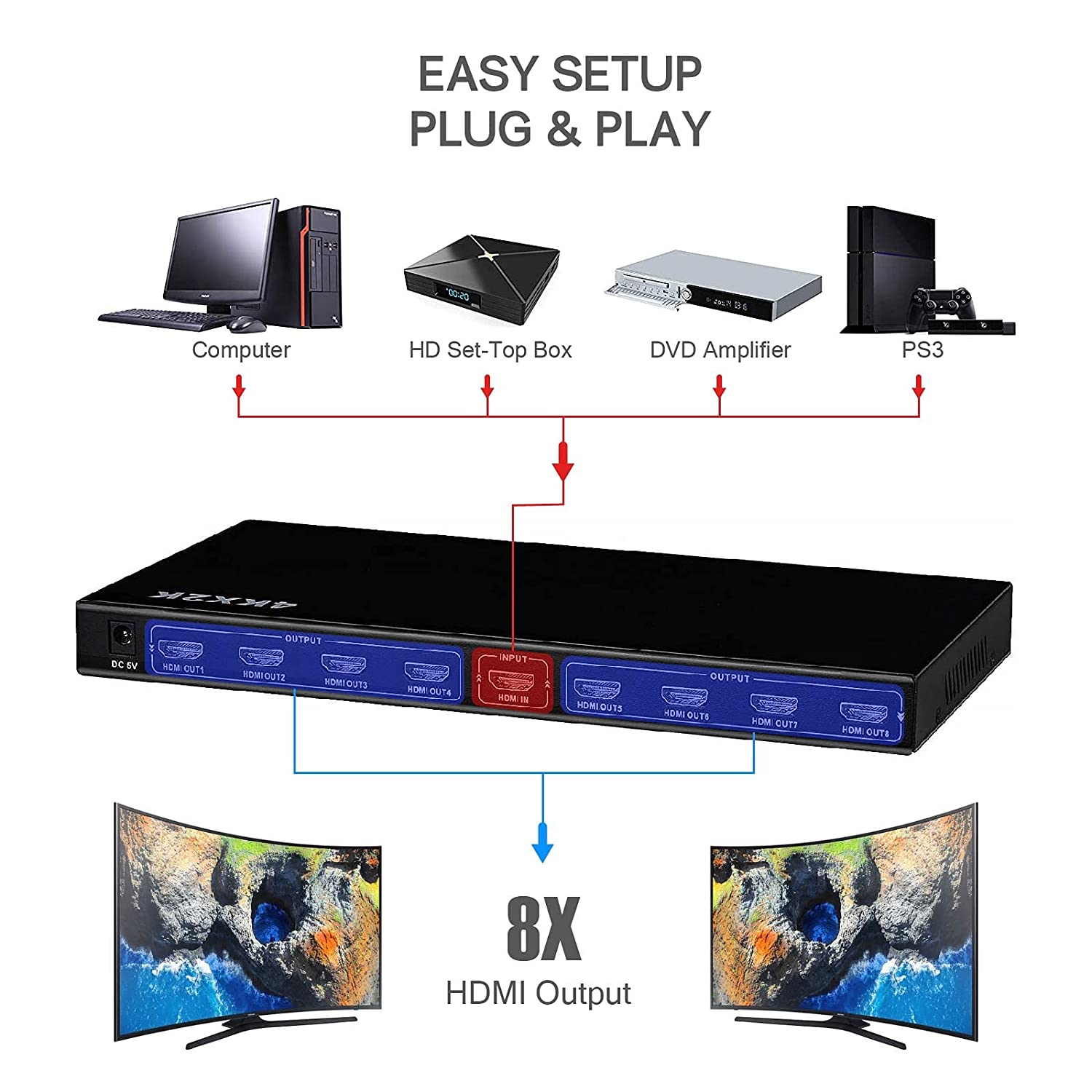

- Pi+® (PiPlus®) HDMI 1×8 Splitter allows 1 single HDMI source to be split to 8 HD monitors or projectors easily.
- Resolution up to 3840x2160@30Hz. it also very easy to be use with high stability and reliability.
- It is widely used at Video conferencing, conference presentations, home theater, office, teaching and so on.
- HDMI input: 1 HDMI
- HDMI output: 8 HDMI
- HDMI version: HDMI 1.4; Supports HDCP1.2; Support 3D
- Max working current: 1.8A
- Operating temperature range: -15 Celsius to 55 Celsius
- Operating humidity range: 5 to 90%RH (no condensation)
- Material: metal
Key Specifications:
- Audio formats: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3 and DSD
- HDMI Version：HDMI1.4
- Bandwidth: Up to 340Mhz
- Signal Speed : Up to 10.2Gbps
- The length of input cable：PS4≤15M；BLUE DVD≤15M
- The length of output cable：≤25M
- The cable standard：26AWG HDMI1.4
- Operation Temperature：0℃-70℃
- Working Voltage : DC 5V Power
- Adaptor：5V 2A Support 30/36 dark, extended color space support,
- including: SYCC601、Adobe RGB、AdobeYCC601
Package Included:
- 1 x HDMI Splitter
- 1 x 5V DC Power Adaptor
- 1 x User Manual
